Description du produit

MODEL	TSR901PSR			TSR903PSR

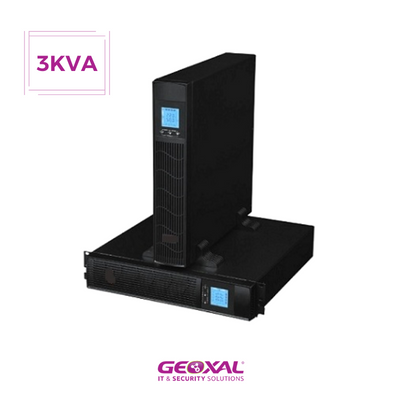

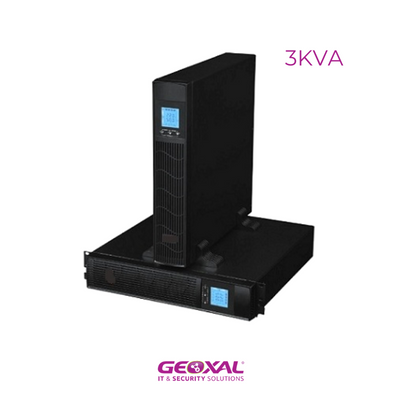

Capacity	1 KVA / 900 W			3 KVA / 2700 W
INPUT
Rated voltage	208 V / 220 V / 230 V / 240 Vac
Voltage range	110 ~ 176 Vac (linear derating between 50% and 100% load ); 176 ~ 280 Vac (no derating); 280 ~ 300 Vac (derating 50%)
Frequency	40 ~ 70 Hz (auto-sense)
Power factor	≥ 0.99
Bypass voltage range	-25% ~ +15% (settable)
OUTPUT
Voltage	208 V / 220 V / 230 V / 240 Vac (settable via LCD)
Voltage regulation	± 1%
Frequency	45 ~ 55 Hz or 55 ~ 65 Hz (synchronized range); 50 / 60 Hz ± 0.1 Hz (battery mode)
Waveform	Sinusoidal
Crest factor	3:1
Harmonic distortion	≤ 2% (linear load); ≤ 5% (non-linear load)
Transfer time	Mains mode to battery mode: 0 ms Inverter mode to bypass mode: 4 ms (typical)
Overload capability	105% ~ 125%: transfer to bypass in 1 min; 125% ~ 150%: transfer to bypass in 30 s; > 150%: transfer to bypass in 300 ms
EFFICIENCY
Mains mode	≥ 90%			≥ 92%
Battery mode	≥ 85%			≥ 87%
ECO mode	≥ 95%			≥ 97%
BATTERIES
DC Voltage	24V	36V	36V	72V	96V	96V
Inbuilt battery	2×9 Ah	3x7Ah	/	6x9Ah	8×7 Ah	/
Charging current (max.)	1 A		6 A	1 A		6 A
Recharge time	8 h
ALARMS
Utility failure	4 s per beep
Low battery	1 s per beep
Overload	1 s twice beep
UPS fault	Long beep

COMMUNICATIONS
RS232 (standard) / USB (optional)	Supports Windows^® 98 / 2000 / 2003 / XP / Vista / 2008 / Windows^® 7 / 8 / 10
SNMP (optional)	Power management from SNMP manager and web browser
OTHERS
Operating temperature	0 ~ 40℃
Relative Humidity	0 ~ 90% (non-condensing)
Noise level	≤ 50 dB (1m)
Dimensions (W×D×H) (mm)	440×468×88			440×658×88	440×468×88 (UPS)	440×468×88
					440x440x86 (BAT)
Packaged dimensions (W×D×H) (mm)	545×592×198			545×782×198	545×592×198 (UPS)	545×592×198
					590x580x200 (BAT)
Net weight (kg)	12.26	13.78	7.58	29.26	9.45(UPS) 27.2 (BAT)	10.4
Gross weight (kg)	15.78	17.3	11.1	33.16	12.97(UPS) 30.2 (BAT)	13.56
